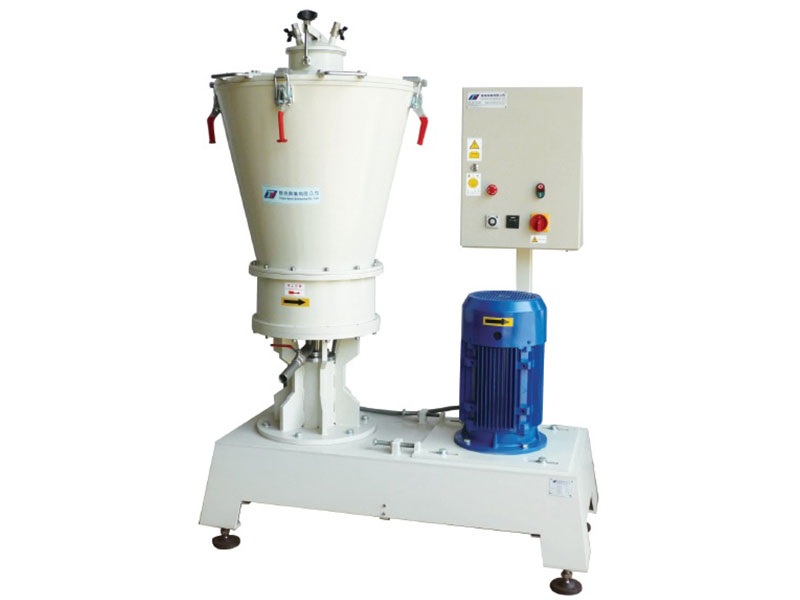

High Efficiency Refining Ball Mill RD-150
MICROMILL, a High Efficiency Refining Ball Mill, is the latest ball mill with stunning functions developed by Triple-Sonic Enterprise. It provides the strict demands of speedy and fine grinding of glaze materials with its unique module-centered design that makes high efficiency grinding and automated cyclic operations possible.
High Efficiency Refining Ball Mill uses highly wearing-resistant aluminum oxide ceramic ball comes with a stainless steel tank devised with circulatory water-cooling system for storage.
RD-150
| SPECIFICATIONS | ||
| Weight | kg | 800 |
| Installed power | kw | 15 |
| Number of motor poles | -- | 4 |
| Min. capacity | Lt. / batch | 50 |
| Max. capacity | Lt. / batch | 150 |
| Min. grinding time | min | 20 |
| Microsphere capacity | kg | 23 |
| Sphere diam. | mm | 6 |
| Max. water inlet temperature | ℃ | 30 |
| Max. water inlet pressure | bar | 1 |
| Max. air inlet pressure | bar | 1 |
| Max. production | Lt. | 150 |
