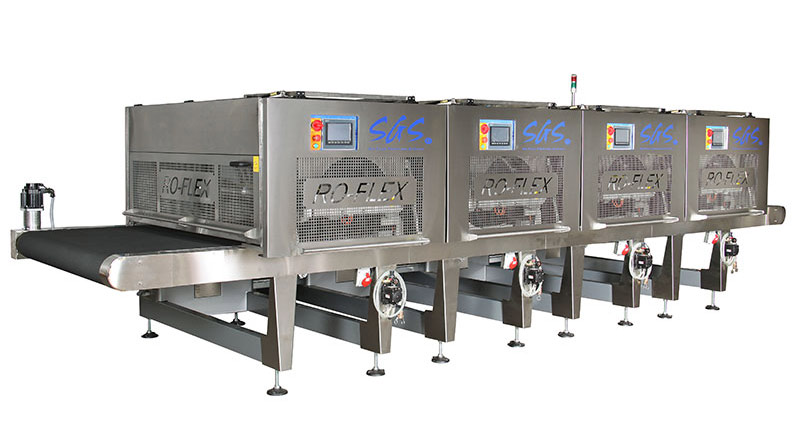

Ro-Flex Printing System / Super Grand Series
SUPER GRAND SERIES SGS
.jpg)
| TYPE | SGS-F1 | SGS-F2 | SGS-F3 | |
| Overall Dimension (mm) | Height | 1730~2100 | 1730~2100 | 1730~2100 |
| Length | 6775 | 6775 | 6775 | |
| Width | 2815 | 2540 | 2240 | |
| Diameter of Roller (mm) | Ø 460 x 1600L | Ø 460 x 1323L | Ø 460 x 1023L | |
| Installed Power (HP) | 22KW | 22KW | 22KW | |
| Belt Altitude (mm) | 850~1200 | 850~1200 | 850~1200 | |
| Speed (mm/min) | 10~40 | 10~40 | 10~40 | |
| Useful Printing Area (mm) | L1440 x W1440 | L1440 x W1163 | L1440 x W863 | |
| Tile Size (mm) | Width | 100~1600 | 100~1323 | 100~1023 |
| Length | 100~1440 | 100~1440 | 100~1440 | |
